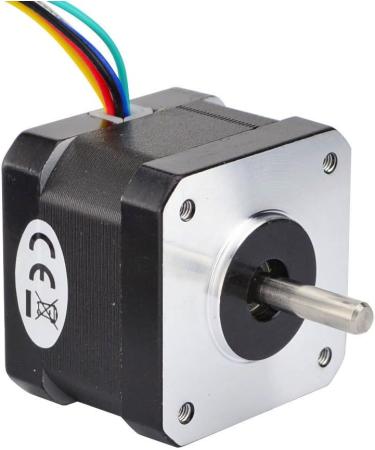

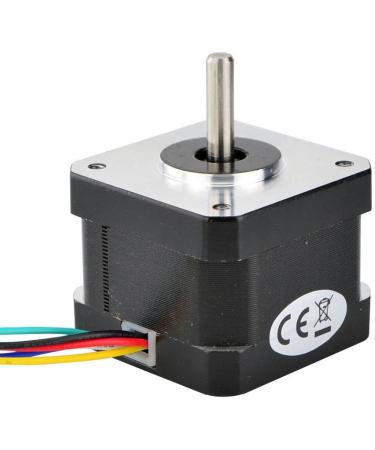

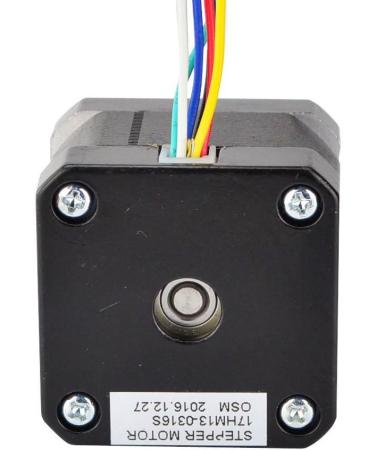

0.9deg Unipolar Nema 17 Stepper Motor 0.31A 16Ncm/22.7oz.in 42x42x34mm 6-Wires

Regular Price: US$119.99

Special Price US$104.99

Availability: In stock

Supplier: STEPPERONLINE

Category: Business & Industry & Science Additive Manufacturing Products 3D Printer Parts & Accessories 3D Printer Motors

Qty:

Or instantly:

US$19.99 shipping fees for any order

Key Benefits

⚙️ 0.9 step angle — 0.9° step angle provides 400 steps per revolution for precise positioning.
💪 Holding torque — 16 Ncm (22.7 oz-in) holding torque for controlled positioning.
💡 Low current — 0.31A rated current per phase at 12V.
📏 Compact frame — 42 x 42 mm frame with 34 mm body length.
🔌 6-wire design — 6-wire unipolar stepper motor with 500 mm lead length.
⚡ Voltage range — Recommended voltage is 12-24V operation range.

Common Questions

What is the step angle?

It has a 0.9° step angle, which provides 400 steps per revolution.

What is the holding torque?

The holding torque is 16 Ncm, which equals 22.7 oz-in.

What current rating does it have?

It has a 0.31A rated current per phase at 12V.

What are the physical dimensions?

The frame is 42 x 42 mm, body length is 34 mm, with a 5mm shaft diameter.

What voltage should I use?

The recommended voltage range is 12-24V.
