24V Control Module, 7 Connectors, 4-Wire Throttle, Fits for Razor E100(V10+), E125 (V10+), E150 (All Version), eSpark(All Version), Trikke E2 (All Version), Model: ZK2400-DP-LD (ZK2400-DP-FS)





Regular Price: US$50.00

Special Price US$34.99

Availability: In stock

Supplier: LotFancy


Be Safe - We Directly Ship From Country of Origin

BE SAFE
WE ONLY SHIP
FROM OFFICIAL SUPPLIERS

From United States
To International
In 5-10 Days
US$19.99 Shipping Fees for any Order


GRAND SELECTION

Think of it and most probably we have it among our grand selection of products!



AMAZING PRICES

Get ready for the amazing and best Supps prices ever!



FIXED RATE DELIVERY

Get your order anywhere on this planet within 5-10 days with a fixed rate of $19.99 (no matter the size of your order)







WhatsApp

+1 (844)-467 8777



PHONE:

+1 (844)-467 8777

24V Control Module

Specification:

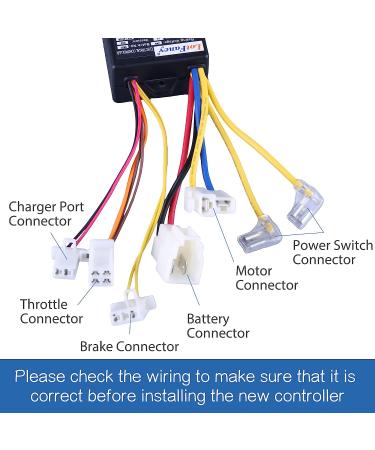

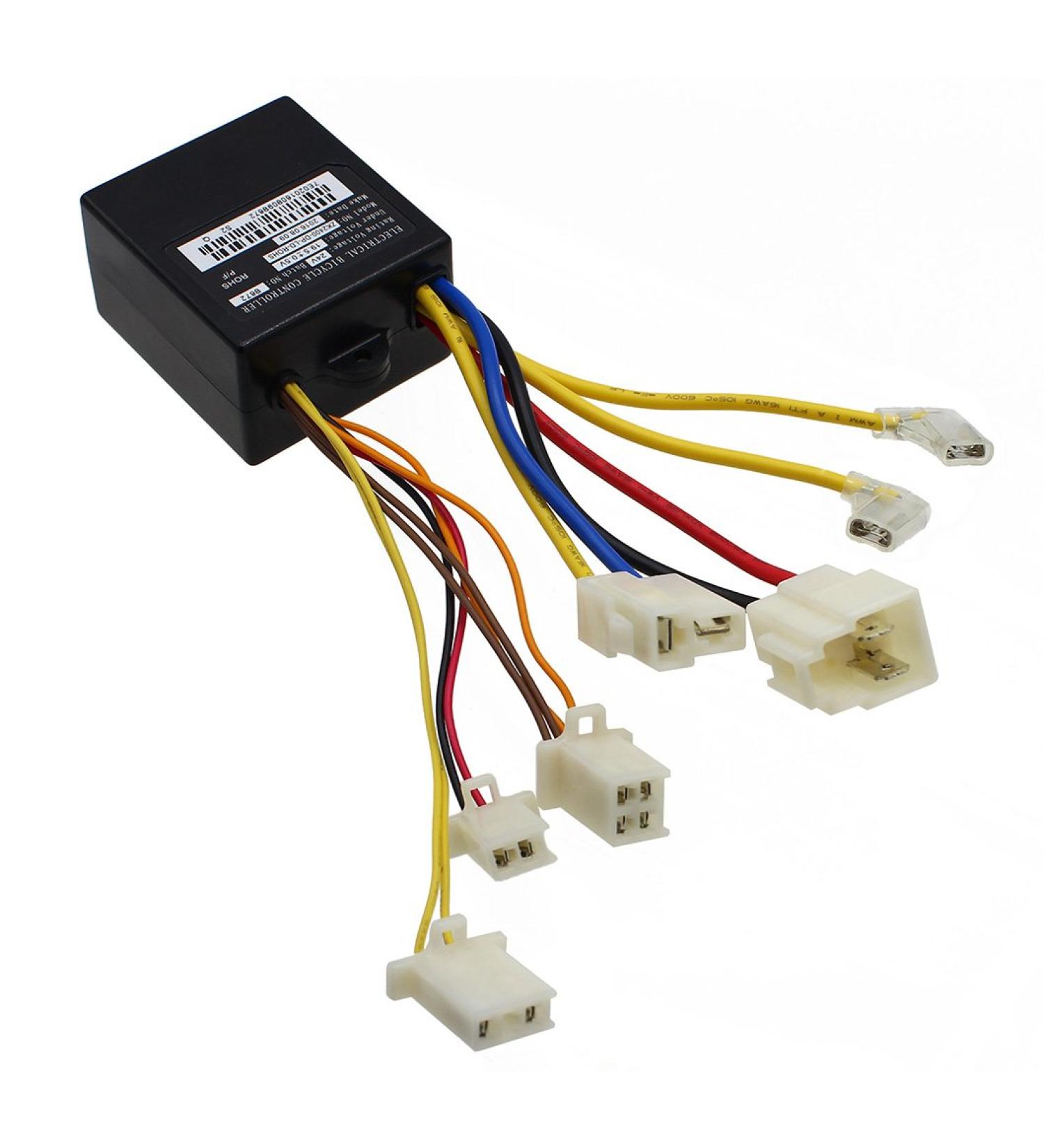

  • This 24V Control Module has 7 connectors (5 plastic connectors & 2 metal connectors). 4 throttle connector.

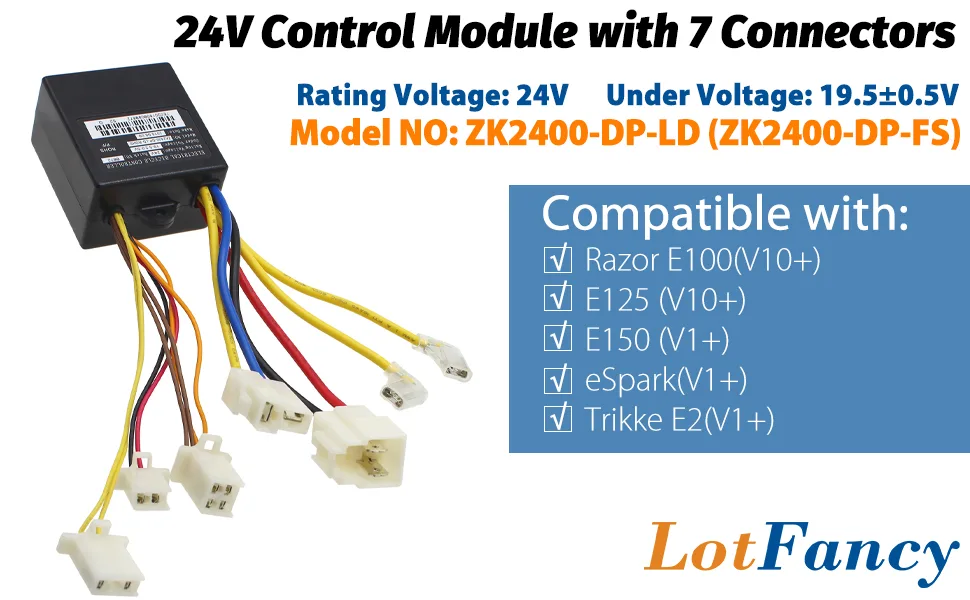

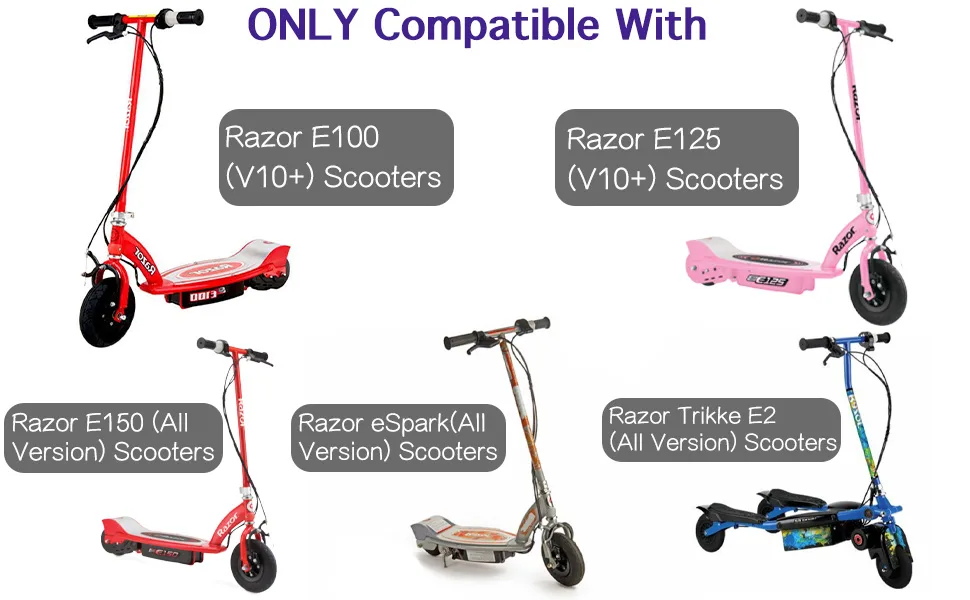

  • Fits the following Razor models: E100(versions 10 and up), E125(versions 10 and up), E150( all versions), eSpark( all versions ), Trikke E2( all versions)
  • Replace Razor Part #: W13111612015. Model No: ZK2400-DP-LD (ZK2400-DP-FS)

Note:

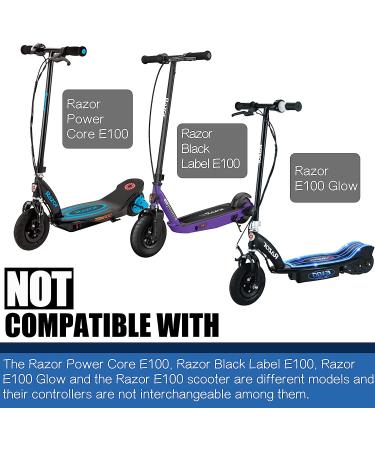

  • Please make sure the model is right. The Razor Power Core E100, Razor Black Label E100, Razor E100 Glow, and the Razor E100 scooters are different models and their controller is not interchangeable among them.
  • Please check the wiring to make sure that it is correct before installing the new controller.

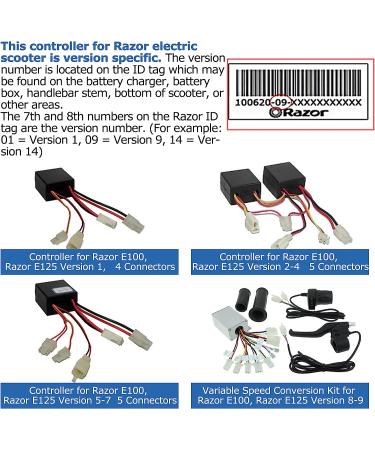

Version Specific Controller: This controller for Razor electric scooter is version specific. The version number is located on the ID tag which may be found on the battery charger, battery box, handlebar stem, bottom of the scooter, or other areas.

The 7th and 8th numbers on the Razor ID tag are the version number. (For example: 01 = Version 1, 09 = Version 9, 14 = Version 14)

controller for razor e100

NOTE:

  • Most electric scooters and electric bikes have controllers which were made specifically for that model. Please carefully confirm the model number of controllers before buying.
  • If a controller is available that will plug and play directly into an electric scooter or bike, however, the controller is not listed by make and model, be careful when installing it because the wiring patterns going to the connectors may be different from that of the original controller. Double check the wiring to make sure that it is correct before installing the new controller. If the connectors are correct but the wiring going to the connectors is incorrect the pins can be removed and installed in different locations on the connector.
  • Sometimes the brake switch becomes defective and locks into a position that makes the controller turn off the motor. If the scooter works after disconnecting the brake switch then the brake switch is defective.

Controller Installation Tips:

1. Before replacing the controller make sure that the key switch or power switch is in the off position.

2. Disconnect the battery pack from the controller first when removing a controller, and connect the battery pack to the controller last when installing a controller.

3. Hang or block the rear wheel off the ground, or remove the chain or belt from the motor before connecting the battery pack to the controller. Sometimes due to damaged or incorrect wiring or faulty electrical components the rear wheel might spin uncontrollably when making the final wiring connection to the battery pack.

4. Do not short-circuit the battery terminals or wiring harness connector pins and make sure the batteries fit snug into place and that all of the wiring and connectors are in good serviceable condition.

razor control module razor control module control module controller control module
Model No: ZK1200-DH Model No: ZK2400-DH Model: HB2430-TYD6K-FS-ROHS Model: HB2430-TYD6-FS-ROHS Model: HB3650-TYD6-FS-ROHS
Votlage 12V 24V 24V 24V 36V
Compatible Razor Power Core E90 Razor Power Core E100 Ground Force Drifter (V3+), Crazy Cart (V1-4), Razor Dune Buggy( V12+), Ground Force (V13+) Razor Dirt Quad (V11+) Razor MX500, SX500 McGrath Dirt Rocket (V1+), MX650(V14+), Razor EcoSmart Metro (All Vertions), RSF650 Electric Sport Bike (All Version), Dirt Quad 500 (V1+), Pocket Mod Bellezza
Connector 7 Connectors 7 Connectors 7 Connectors 5 Connectors 6 Connectors

If the model and version are right, your controller still Does Not Work, the possible causes are as follows:

  • Make Sure The Power Switch Is On
  • Check The Fuse Or Circuit Breaker

If the scooter uses a fuse, look at the inside of the fuse to see if it is burned out.

  • Try Pushing The Scooter To Start

Electric scooters with single-speed throttles will sometimes need to be pushed forward in order to run. Stand on the scooter with one foot and push it forward with your other foot while fully engaging the throttle.

  • Inspect By Sight, Touch, And Smell

Remove the footplate or wiring cover and look for any burned or melted wires, wire connectors, or electrical components. Also look for loose, disconnected, or damaged wires or wire connectors.

  • Test The Other Components Connected To Speed Controller

If all of the other components that are connected to the speed controller test good then the speed controller has to be the problem.

  • Test The Fuse Or Circuit Breaker

Checking the continuity of the fuse or circuit breaker with a multimeter is the best way to determine if they are working or not.

  • Test The Brake Lever Switch

Most scooters have normally open brake switches, however, some scooters have normally closed brake switches. To test for a faulty normally open brake switch, disconnect the brake lever wire connector from the speed controller and then see if the scooter runs. If the scooter run when the brake lever switch is disconnected from the speed controller then the brake lever switch is a normally open type which is faulty. To test for a faulty normally closed brake lever switch, disconnect the brake lever wire connector from the speed controller and bridge the two terminals together in the controller's connector that the brake switch is unplugged from. If the scooter runs when the controller's brake switch connector terminals are bridged together then the brake switch is a normally closed type which is faulty.

  • Test The Key Switch Or Power Switch

Testing the continuity of the key switch or power switch with a multimeter is the best way to determine if it is working or not.

  • Test The Battery Charger Port
  • Test The Battery Charger

If the charger is not charging the battery or battery pack up to a 100% state of charge then the charger is faulty.

  • Test The Battery Pack On A Scooter That Runs
  • Test The Battery Pack On A Scooter That Does Not Run

If the scooter is not running, a load test can be performed on its batteries by removing the battery pack from the scooter and taking the individual batteries out. The individual batteries can then be tested with an automotive battery load tester.

  • Test The Voltage Of The Battery Pack

If a battery pack's Voltage does not bounce back to above its rated Voltage level within a few minutes after being discharged that points towards a defective or worn-out battery pack.

  • Test The Throttle
  • Inspect The Speed Controller

Look for any burned or melted wires or wire connectors on the speed controller. If any wires are burned or melted then the speed controller may be defective.

  • Inspect The Motor

Look for any burned or melted wires or wire connectors attached to the motor.



Installation Tips: The E100 series Razor scooter is a PUSH START scooter. You need to push the scooter, twist the throttle and then the motor will engage. Please check the wiring to make sure that it is correct before installing the new controller. Version Specific Controller: The version number is located on the ID tag which may be found on the battery charger, battery box, handlebar stem, bottom of scooter, or other areas. The 7th and 8th numbers on the Razor ID tag are the version number. (For example: 01 = Version 1, 09 = Version 9, 14 = Version 14). Replace Razor part #: W13111612015, Model No: ZK2400-DP-LD (ZK2400-DP-FS). 7 connectors (5 plastic connectors & 2 metal connectors), 4 pin throttle connector. DOES NOT Fit Razor Black Label E100, Power Core E100, E100 Glow Electric Scooters. The Razor Power Core E100, Razor Black Label E100, Razor E100 Glow and the Razor E100 scooter are different models and most parts are not interchangeable among them. COMPATIBLE ONLY WITH: Razor E100 & E125 Versions 10 and up, E150 All Versions, and eSpark(All Versions), Trikke E2 (All Versions).
