Metcal PTTC-701B Tweezer Soldering Cartridge Bent 30 0.4 mm

Regular Price: US$191.99

Special Price US$159.99

Availability: In stock

Supplier: Metcal

Category: Electronics

Qty:

Or checkout instantly with:

Metcal SmartHeat Technology

Key Benefits of SmartHeat

Improves process control
No temperature overshoot
Temperature repeatability
No calibration
Extremely fast time to temperature and temperature recovery

Metcal SmartHeat

Fixed-temperature soldering cartridges for maximized process control

For industries including aerospace, medical devices, and the military, Metcal SmartHeat technology removes temperature variability by taking the temperature control away from the operator and into the self-regulating tip. This ensures soldering temperatures within the engineering specification and removes the significant risk associated with poor solder joints.

How SmartHeat Works

The Metcal cartridge is made of a heater of proprietary design, consisting of a non-heating copper core and an outer heating layer of magnetic alloy. The composition of the alloy predetermines the tip temperature.

SmartHeat in Detail: Tip temperature is set at the molecular level

An alternating current is passed over the heater, the magnetic alloy causes the current flow to become confined to the “skin.” This is the Skin Effect. The resulting high current density causes rapid heating.?
As it heats up, the magnetic alloy reaches its fixed temperature (Curie point) and loses its magnetic properties. This eliminates the Skin Effect, causing the migration of current to the low-resistance, non-heating copper core of the heater.?
As the tip cools slightly, the temperature falls below its fixed temperature, and its magnetic properties are restored. The Skin Effect immediately returns, and heating begins again, repeating the cycle.
Thus, the tip self-regulates, maintaining a constant temperature (±1.1°C).

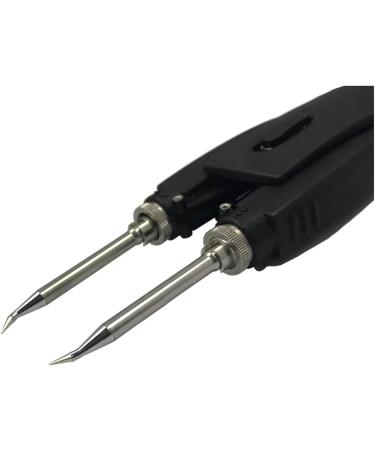

Tweezer , Bent 30°, 0.4 mm, 700 Series (390 °C). Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation. All tweezer cartridges are available in 3 temperature ranges, 600-series nominally 330 °C, 700-series nominally 390 °C and 800-series nominally 450 °C. The temperature/series is designated by the first digit following the dash in the part number. e.g. 700-series will be PTTC-7xx and 800-series will be PTTC-8xx. PTTC-Tweezer Tip Cartridges are the standard tweezer tip range for the Metcal MX-500, MX-5000 and MX-5200 series soldering systems.
