Vision Scientific VMU0005-B Binocular, 10x WF Eyepiece, 40x1000x Magnification, LED Illumination, Coaxial Coarse & Fine Focus, Double Layer Mechanical Stage, 1.25 NA Abbe Condenser

Regular Price: US$589.99

Special Price US$534.99

Availability: In stock

Supplier: Vision Scientific

Category: Electronics Camera & Photo Binoculars & Scopes Microscopes Compound Microscopes Compound Binocular Microscopes

Qty:

- VMU0005-B

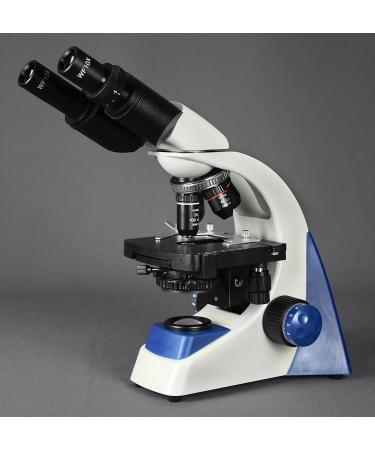

This Vision Scientific VMU0005-B compound microscope features a Siedentopf 30° inclined binocular head designed to reduce eye and neck strain. It is equipped with a 48mm–75mm interpupillary adjustment, and a diopter adjustment on one ocular tube to compensate for eye-strength difference when needed. It features a reverse nosepiece to facilitate easy slide changes. The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing. It is also sealed to protect against further damage that can be caused from contact with liquid or oils.

Rack and pinion adjustable 1.25 N.A. Abbe Condenser, and turn-wheel opening iris diaphragm with plastic shield protector, for optimal resolution and image contrasting. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field. Rugged cast aluminum with grey enamel finish. Packed in a lifted Styrofoam both, includes a dust cover and a instruction manual.

Specifications:

Head: Siedentopf binocular, 30° inclined, rotates 360° (54mm–76mm interpupillary adjustment)
Eyepiece: WF 10x with scale pointer
Magnification: 40x, 100x, 400x, 1000x
Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic
Stage: Double layer built-in mechanical stage with pair of stage clips
Focusing: Coaxial coarse and fine focusing with gear movement for smooth operation
Condenser: 1.25 NA Abbe condenser
Diaphragm: Iris diaphragm with a swing-out filter holder
Light Source: LED illumination with intensity control
Power: 110V
Overall Dimensions: 6.25" x 8.5" x 13.25" / Weight: 8.4 lbs
Binocular compound microscope with LED illumination
Pair of 10x widefield eyepieces (one with calibrated pointer)
4x, 10x, 40xR, 100xR DIN achromatic objectives
Immersion oil for 100xR objective
Double layer, built-in mechanical stage with 2 Stage clips

Innovative Features


Iris Diaphram, 1.25 abbe condensor The opening of iris diaphram is control by turn wheel with plastic shield protection. The NA 1.25 abbe substage condenser is vertically adjustable by rack and pinion for better resolution and image contras	Nosepiece & Stage Reverse Quadruple Nosepiece (ball bearing type) with four DIN achromatic objectives; Built-in mechanical stage is low-profile and ball-bearing, ensuring easy mobility and precise control of specimen under observation	EyePiece Extra wide len eyepiece with calibrated pointer for measurment	Binocular head 30° inclined binocular head that rotates 360°. One eye tube is equipped with a diopter adjustment to compensate for eye strength difference when needed. Seidentoft design binocular head which allows a adjustment for interpupilary distances without refocusing

Packing List:

One dust cover
User manual
14" x 9" x 19"
11 lbs

About Vision Scientific

Vision Scientific is a leading supplier of scientific products throughout North America. Owned and operated by veterans in the scientific equipment industry who value quality, it has served the educational, medical and industrial sectors for over 30 years.

Our technicians have years of first-hand experience and have extensive knowledge on the equipment we sell. We provide maintenance and repair parts from our stock on-hand. Vision Scientific keeps an open line of communication for everyone. You can communicate through Amazon and our supporting staff will answer you as quickly as possible. We truly believe here at Vision Scientific, that our company and our products are unique from any other merchandising providers.

Value-Added Open Box Policy

Before we ship our microscopes to customers, our in-house technicians open each individual package and inspect every microscope. They ensure that the mechanical movement, electrical safety and optical alignment are in perfect order, with no dust in the optical system. Our superior quality is supported by their experience and our inventory of microscope parts on-hand. Should you have any questions or concerns, feel free to message us through Amazon and we'll get back to you as quickly as possible.


	VMU0005-B	VMU0005-M	VMU0005-T
Head	Binocular	Monocular	Duel View
Magnification	40X - 1000X	40X - 1000X	40X - 1000X
Stage	Mechanical Stage	Mechanical Stage	Mechanical Stage
Objective Lens	4X, 10X, 40X, 100X	4X, 10X, 40X, 100X	4X, 10X, 40X, 100X
Light Source	LED Illumination	LED Illumination	LED Illumination
Digital camera	N/A	N/A	Optional

Ideal for teaching microscopy to students at the senior high school and college level, or for use in veterinary/medical applications. Double-layer built-in mechanical stage is low-profile with ball-bearing, ensuring easy mobility and precise control of specimen in X and Y axis coordination. Viewer can return to a location under observation before. LED illumination with intensity control, guarantees a bright, clear and crisp, cool-to-touch white light. LED bulb has a lifespan of up to 5000 hours. Reversed quadruple nosepiece (ball bearing type) with four DIN achromatic objectives which are parfocaled, parcentered, and color-coded, assists in trouble-free slide changes. Siedentopf 30° inclined binocular head that rotates 360°, allowing for reverse position viewing and trouble-free observation for two people. Eyepiece with a scale pointer ensures that definite points on the slide can be easily designated, identified and measured.

Manufacturer: Vision Scientific. Date First Available: March 29, 2016. Is Discontinued By Manufacturer: No. Best Sellers Rank: #6,811 in Camera & Photo Products. Customer Reviews: 3.2 out of 5 stars 6 ratings 3.2 out of 5 stars. : B01DL1N2HW. Item Weight: 0.01 ounces. Product Dimensions: 8.5 x 6.25 x 13.25 inches.
